Brief introduction

RS232 allows up to four serial devices networking

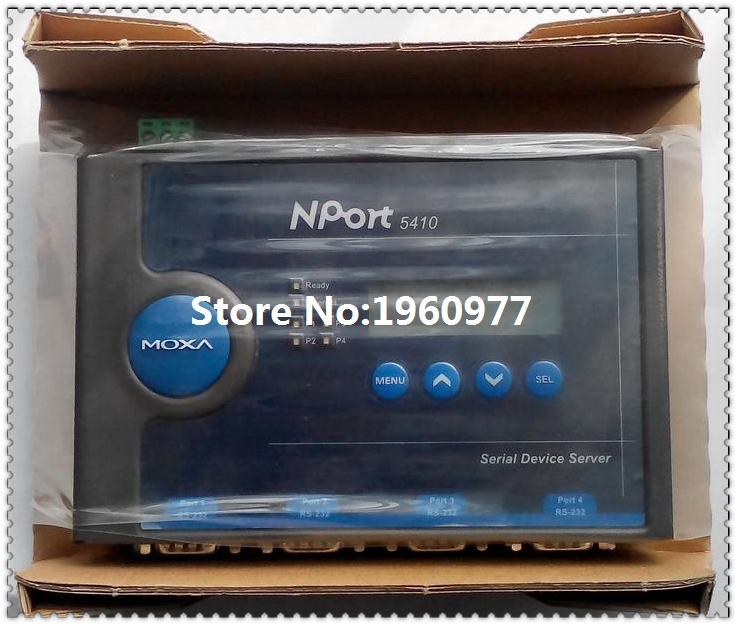

NPort 5400 series basic function is to your existing serial devices linking allows you to easily easily be connected to the Ethernet serial device. Not only to ensure that your existing hardware resources, but also to ensure the possibility of your future network expansion. In addition, NPort 5400 series can easily between serial and Ethernet for two-way data transfer, so you can achieve centralized management of serial devices, and in the network of decentralized management target host.

Easy to use Serial Device Server
Built humane LCM display, it can display all status information, and contains 4 to enter information and select the operating mode button, so you can easily set up server information, including IP address, subnet mask, and You can even monitor the status of the server or send and receive data, no other PC device to complete the installation of the action.

Real COM / TTY Port
NPort 5400 series functions like hosts attached multiport serial cards, and with TCP / IP networks. By NPort\\\'s Real COMM / TTY drive mode, operating system will identify the serial NPort5400 series of Real Com port, LINUX operating system, it will be defined as the Real TTY port. Therefore, NPort 5400 with the basic transmit / receive data, RTS, CTS, DTR, DSR, and DCD (input) control signals.

Independent serial ports to follow different modes of operation settings
Various different operating modes selectable serial port, truly multi-functional mode of operation. NPort 5400 Series products are suitable for connection needs through TCP / IP network for remote data reading, data processing equipment and various multi-point data transmission and other work. For example, you can set NPort5400 series driver model port1, port2 is set to TCP Server mode, but port3, port4 is set to TCP Client mode.

Feature

- Easy-to-use LCM (Liquid Crystal Moudle) interface that can be used to set the IP address
- Automatic detection of 10 / 100Mbps Ethernet network
- 4 serial ports with RS232 interface
- Support for TCP Server, TCP client, UDP, and driver model
- Supports Web, telnet, and serial console
- Support for SNMP MIB-II network protocol

LANEthernet: 10/100 Mbps, RJ45
: built-in 1.5 KV magnetic isolation
Serial portsNPort 5410
Interface: RS-232
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
NPort 5430, NPort5430I
Signal: RS-422: Tx +, Tx-, Rx +, Rx-, GND
RS-485 (4 wire): Tx +, Tx-, Rx +, Rx-, GND
RS-485 (2 line): Data +, Data-, GND
Serial Line : All signals 15 KV ESD;
NPort 5430I provides 2 KV optical isolation
Power line : 1 KV Burst (EFT), EN61000-4-4;
0.5 KV Surge, En61000-4-5
RS-485 data flow: patented technology, automatic data flow control function
Energy (ADDC )
Advanced embedded functionEmbedded HMI, with four buttons LCM display
Embedded buzzer
Embedded Real-Time Clock
Built-in watchdog timer
Serial communication parametersParity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: RTS / CTS, XON / XOFF
Rate: 50 bps ~ 921.6 Kbps
Software FeaturesProtocol: ICMP, IP, TCP, UDP, DHCP, BootP, Telnet, DNS,
SNMP, HTTP, SNTP
Tools: NPort Administrator applies to 95/98 / ME / NT / 2000 / XP / 2003
Driver support: 95/98 / ME / NT / 2000 / XP / 2003 / XP
x64 / 2003 x64 COM drivers, Linux real TTY port driver, SCO Unix,
SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2
Configuration: Web Browser / telnet console serial port, or a tool
Power requirementsPower Input: 12 ~ 48 VDC
Power Consumption: 5410: 300 mA 12 V (max.)
5430: 380 mA 12 V (max.)
5430I: 600 mA 12 V (max.)
Mechanical propertiesShell: SECC metal (0.8 mm)
GW: 5410: 0.5 kg (1.10lb)
5430: 0.5 kg (1.10lb)
5430I: 0.5 kg (1.10lb)
Work EnvironmentOperating temperature: 0 ~ 55 C (32 ~ 131 F?), 5 ~ 95% RH?
Storage temperature:? -20 ~ 85 C (-4 ~ 185 F?), 5 ~ 95% RH
By certificationEMC:
CE: EN55022 / EN55024 Class A
FCC: FCC Part 15 Subpart B Class A
Safety:
UL: UL60950-1
TüV: EN60950-1
Medical Applications Certification: EN 60601-1-2 Class B, EN55011 (NPort 5410)
Warranty 3 years
